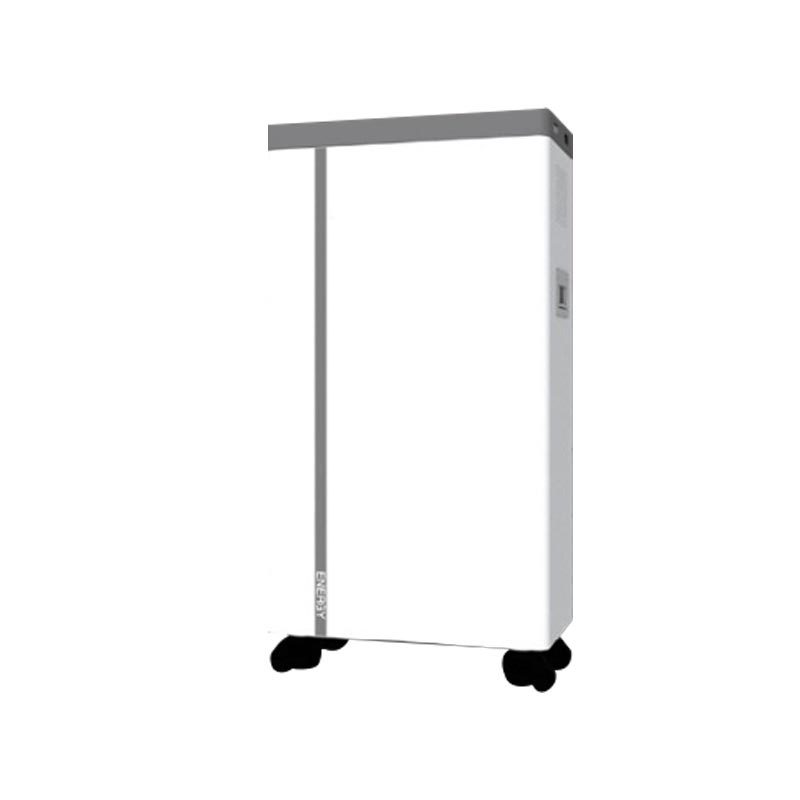

Geya Floor-stående bolig ESS-WLL016A1
Geya-gulvet-stående bolig-ESS-WLL016A1 er et næste generations hjemmeenergilagringssystem designet til at give pålidelige, effektive og miljøvenlige strømløsninger. Med en stor kapacitet på 16,08kwh sikrer det uafbrudt strømforsyning til husholdninger, der reducerer afhængigheden af nettet og optimerer energiforbruget.
Key Features of Geya Floor-standing Residential ESS-WLL016A1
1. High-capacity power storage – 16.08kWh total energy, 15.27kWh usable energy, meeting the daily energy needs of households.
2. Advanced safety protection – Equipped with overcurrent, overvoltage, short circuit, undervoltage, and overtemperature protection, ensuring operational safety.
3. Intelligent management – Supports CAN/RS485 communication, enabling smart monitoring and optimized energy management.
4. Passive cooling system – Designed with natural cooling technology, eliminating the need for an active cooling system, increasing efficiency, and reducing maintenance costs.
5. Certified for safety and sustainability – Complies with CE, UN38.3, MSDS, and RoHS standards for environmental and safety assurance.
6. Long lifespan & high efficiency – 95% Depth of Discharge (DOD) ensures maximum battery utilization and prolonged service life.
7. Compact floor-standing design – Durable metal enclosure, IP20 protection rating, making it ideal for indoor environments.
Technical specification
| Model | PowerCool-WLL016A1 |
| Total Energy | 16.08kWh |
| Usable Energy | 15.27kWh |
| Voltage | 44.8-57.6Vdc |
| Nominal Voltage | 51.2Vdc |
| Rated Capacity | 314Ah |
| Max. Charge Voltage | 57.6Vdc |
| Nominal Discharging Current | 157A |
| Nominal Charging Current | 157A |
| Weight | 135kg |
| Dimension(mm)(H*L *W) | 871*450*250mm |
| Max.recommended DOD | 95% |
| Operating Condition | Indoor |
| Operating charge | 0~55°C |
| Temperature Discharge | 0~55°C |
| Standard Ambient Temperature Range | 0~40°C |
| Storage Temperature Range | >1 month 0~35°C / ≤1 month -20~45°C |
| Humidity | 5% ~ 95%(RH)(No Condensation) |
| Over Voltage Category | II |
| Cooling Type | Natural cooling |
| Case Material | Metal |
| Installation | floor-standing |
| IP Rating | IP 20 |
| Protective Class | I |
| Max. Connection Number | 6P |
| Communication | CAN / RS485 |
| Battery Protection | Over-current/Over-voltage/Short circuit/ Under-voltage/Over-temperature |
| Certificates | CE, UN38.3, MSDS |
| Warranty | 5 years |
